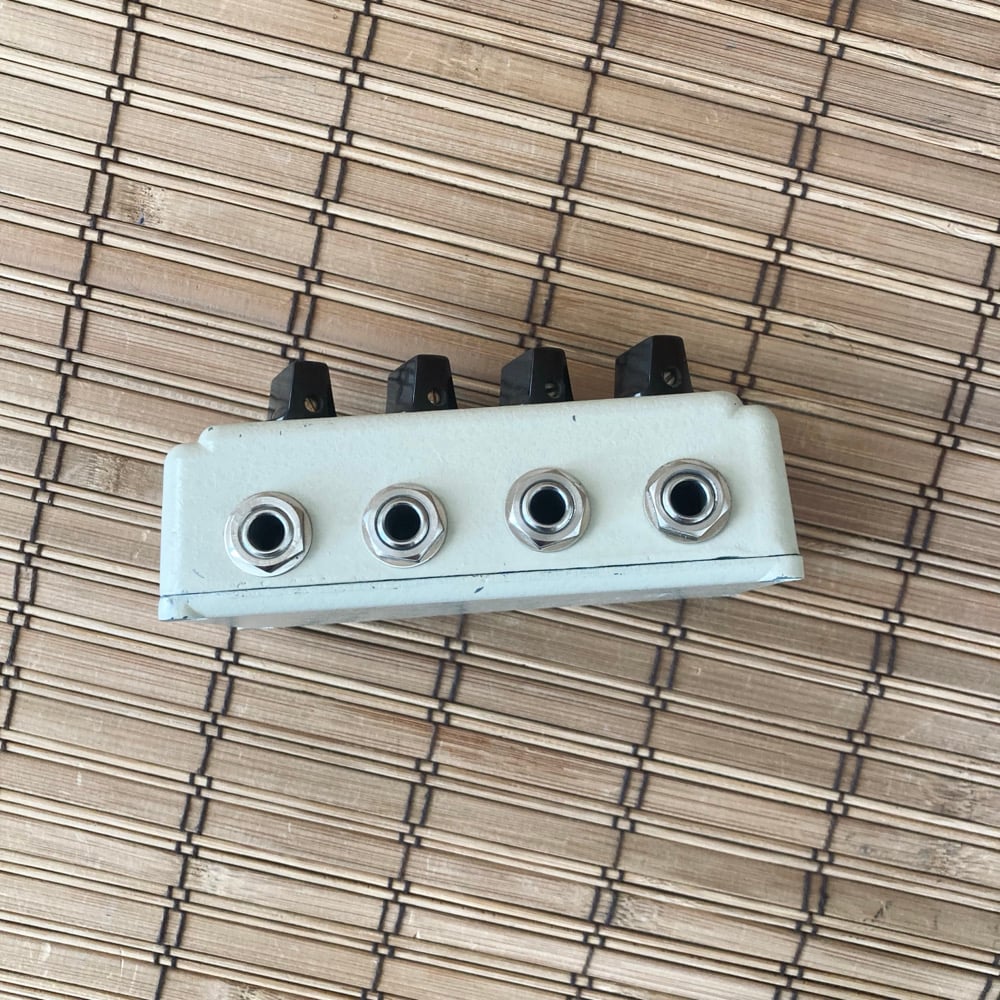

Image 1 of DOD 240 • Resistance Mixer • Passive 4:1 • for Pedals • 1980 • made in USA

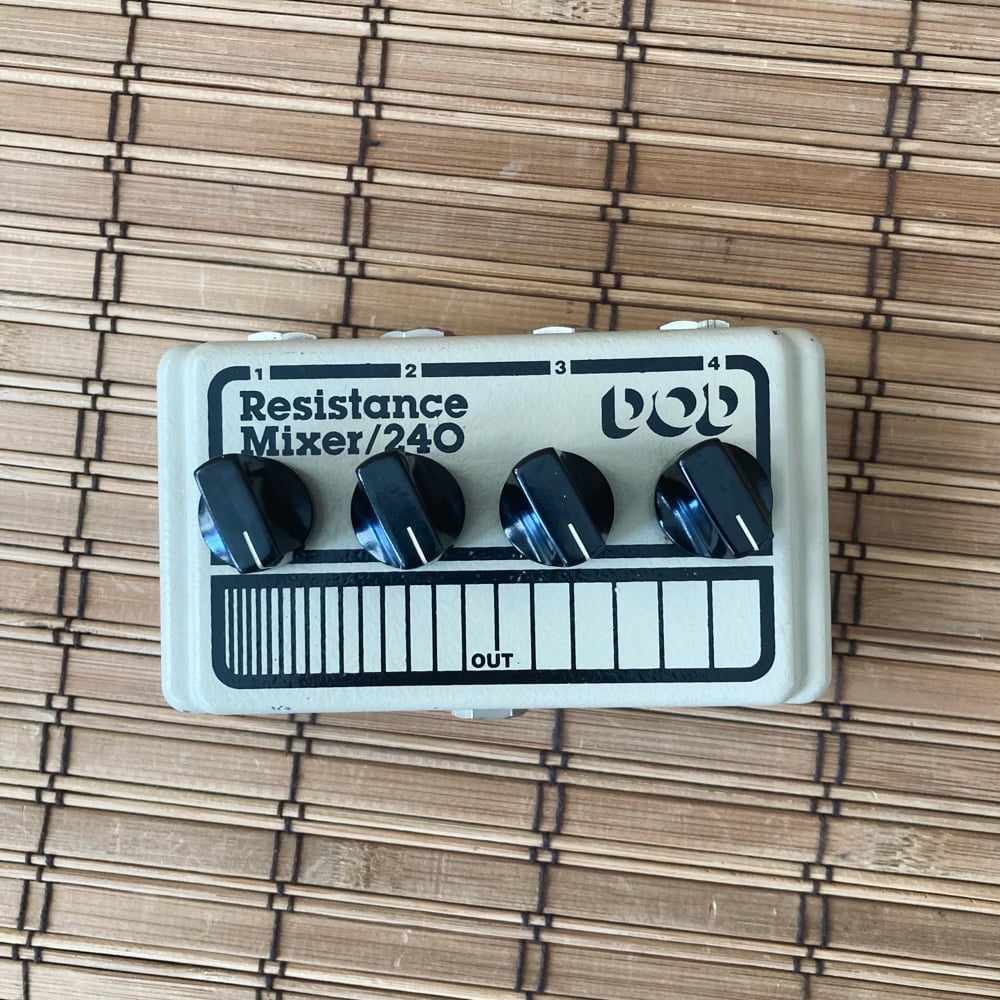

Image 2 of DOD 240 • Resistance Mixer • Passive 4:1 • for Pedals • 1980 • made in USA
Image 3 of DOD 240 • Resistance Mixer • Passive 4:1 • for Pedals • 1980 • made in USA
Image 4 of DOD 240 • Resistance Mixer • Passive 4:1 • for Pedals • 1980 • made in USA
Image 5 of DOD 240 • Resistance Mixer • Passive 4:1 • for Pedals • 1980 • made in USA
1 of 5

DOD 240 • Resistance Mixer • Passive 4:1 • for Pedals • 1980 • made in USA

$55.00

DOD resistance mixer in great, fully functional condition. There are a lot of different designs on these but I think I like this one might be my favorite. The pots inside are dated 1980.


From an early 1980s DOD catalog: "The Resistance Mixer 240 is a 4-channel mixer which accepts 4 instruments or microphones, provides a level control for each, and mixes the 4 inputs into a single output. The Resistance Mixer 240 can [also] be used as a 4-channel Y-cord, turning the controls to maximum, using the output as an input, and running the 4 channels into individual amplifiers or channels."

Listed specifications: Input impedance: greater than 50 kOhms; output impedance: greater than 15 kOhms (early 1980s catalog)
