Roland R-8M • Total Percussion Sound Module • Rackmount Electronic Drums • 1980s made in Japan

Condition: Used • Very Good

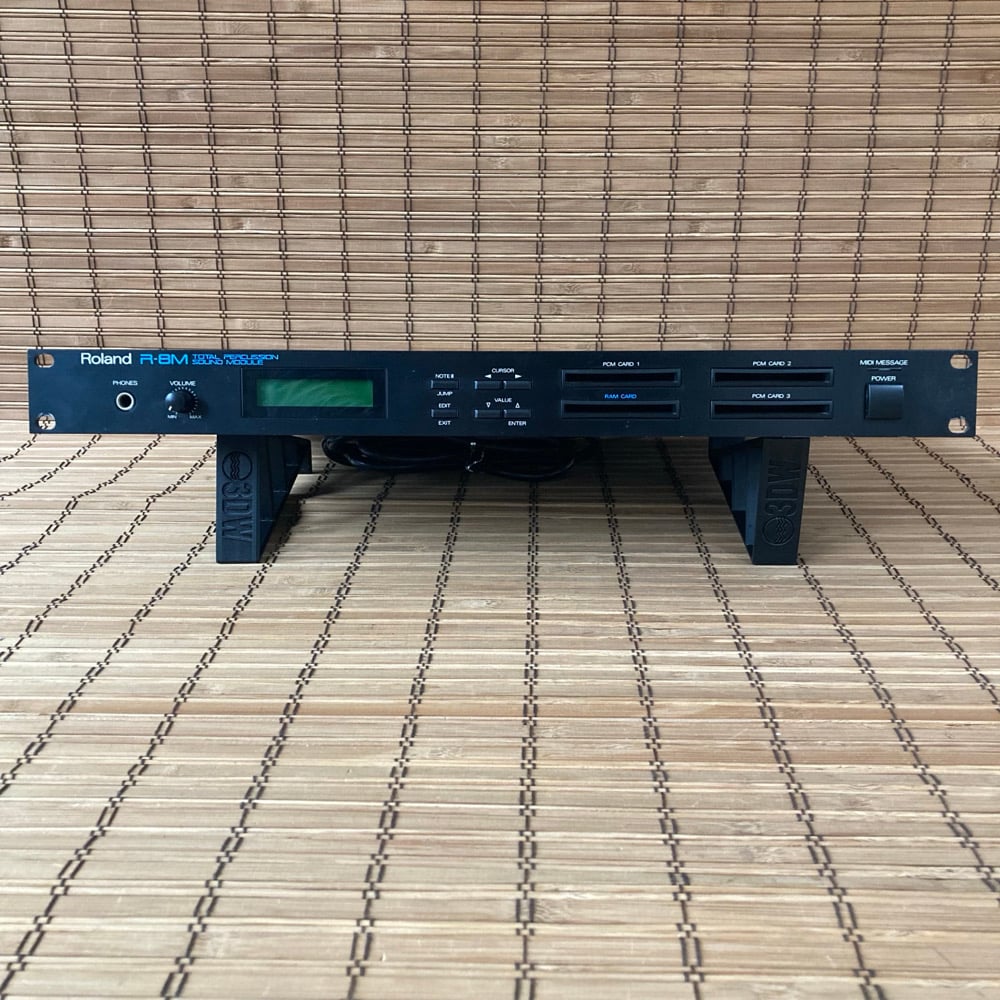

Roland R-8M Roland R-8M Total Percussion Sound Module in great working order. Classic vintage rack-mounted electronic drum module

Tested and fully-functional with some wear from use.

120V North American power.

Check my other listings for more Roland rack instruments.

Display stands not included.

SOUND SOURCE:
Internal: 68 Sounds
Sampling Frequency: 44.1 kHz
Dynamic Range: 16 bit
Maximum Simultaneous Notes: 12 notes

INTERNAL MEMORY:
Patch: 32
Feel Patch: 16
Setup: 1

RAM CARD MEMORY:
Patch: 32
Feel Patch: 16
Setup: 1

DISPLAY:
16 Character 2 line LCD (With Backlight)

INDICATORS:
Note Number / Jump Button
Edit Indicator
MIDI Message Indicator

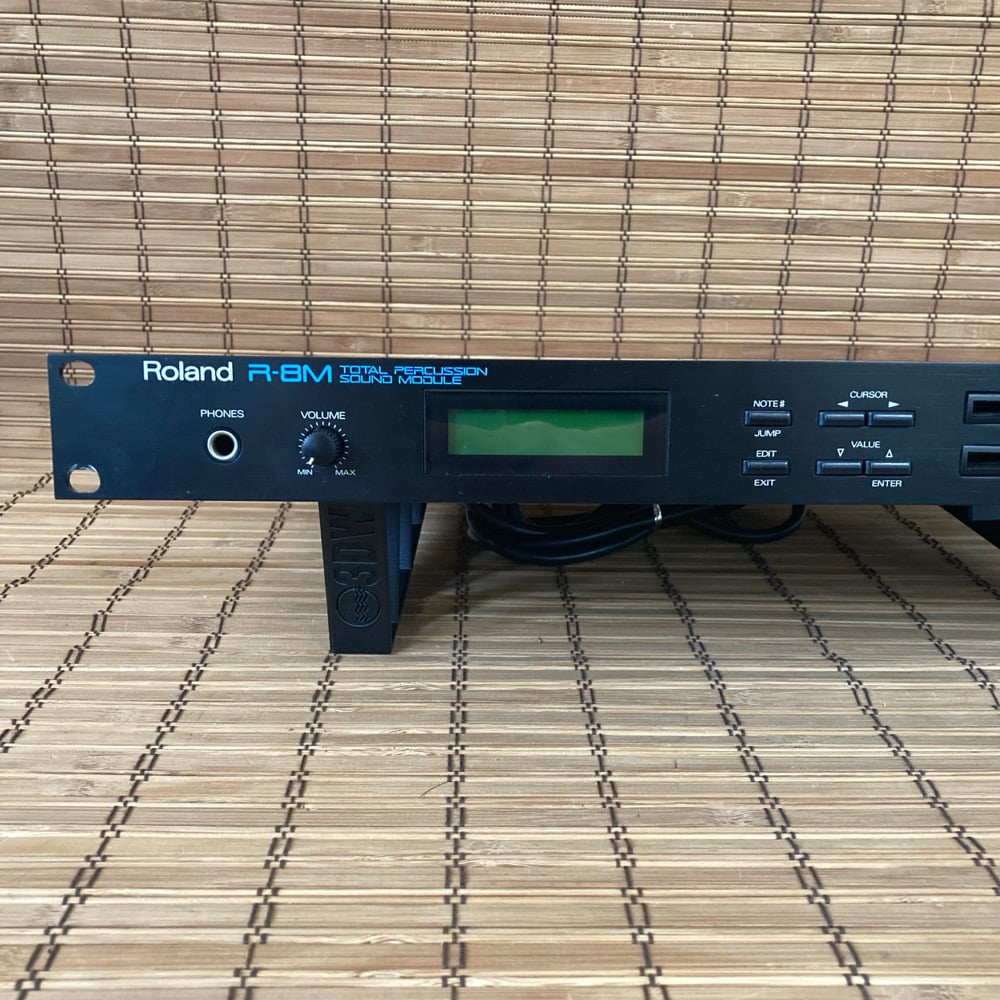

KNOBS AND BUTTONS:
Volume Knob
Note Number / Jump Button
Edit / Exit Button
Cursor Buttons ( ®)
Value Buttons (Enter)
Power Switch

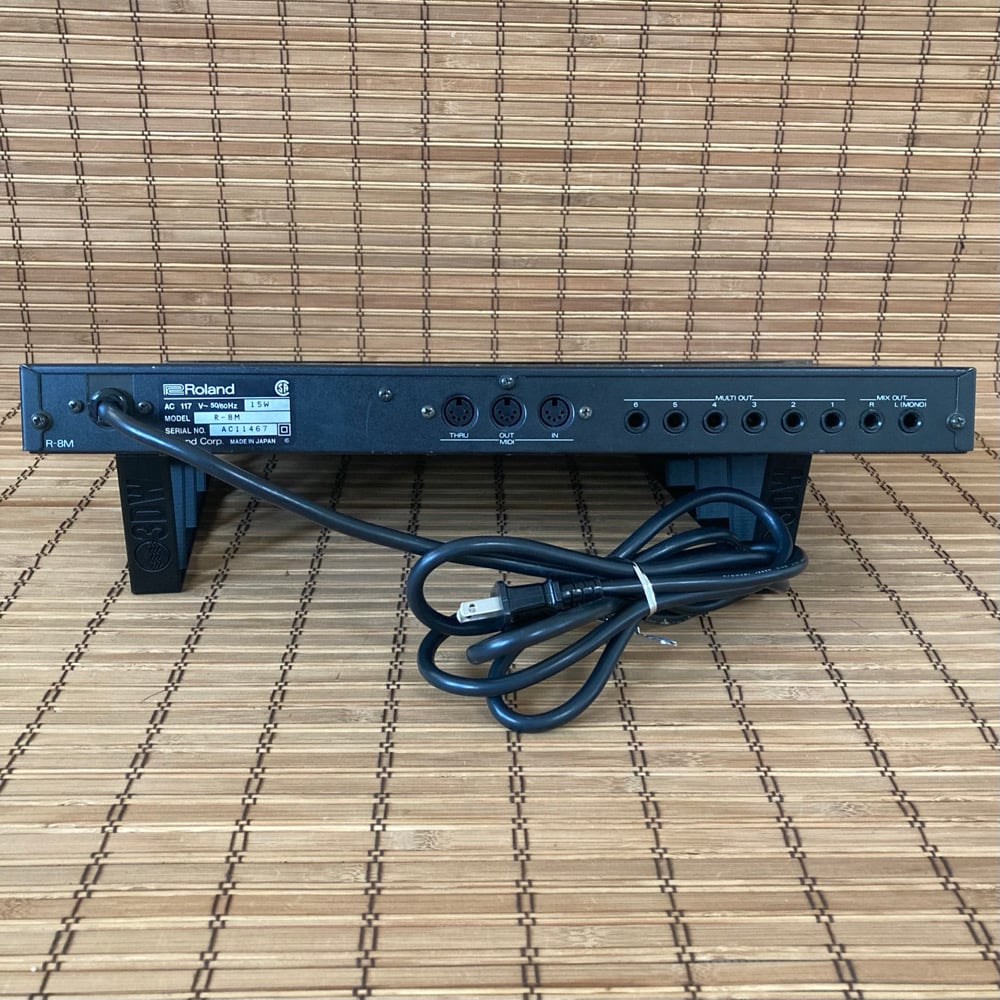

OUTPUT JACKS:
Multi Out Jacks 1 - 6
Mix Out Jacks (L (MONO) / R)
Headphone Jack

TERMINALS:
PCM Card Slot x 3
RAM Card Slot
MIDI Connectors (IN / OUT / THRU)

EXTERNAL DIMENSIONS:
482 (W) x 358 (D) x 45 (H) mm
19' x 14 - 1 / 8' x 1 - 3 / 4'
EIA - 1U Rack Mount Type

WEIGHT:
4.5 kg / 9 lb 15 oz

*Listed shipping prices are flat rates - send me a message for a quote to your address which usually costs less.*
