Rane MP 24 • DJ Rack Mixer / Preamplifier • 3x Phono, 6x Line, 2x Mic • 1988 made in USA

Condition: Used • Good

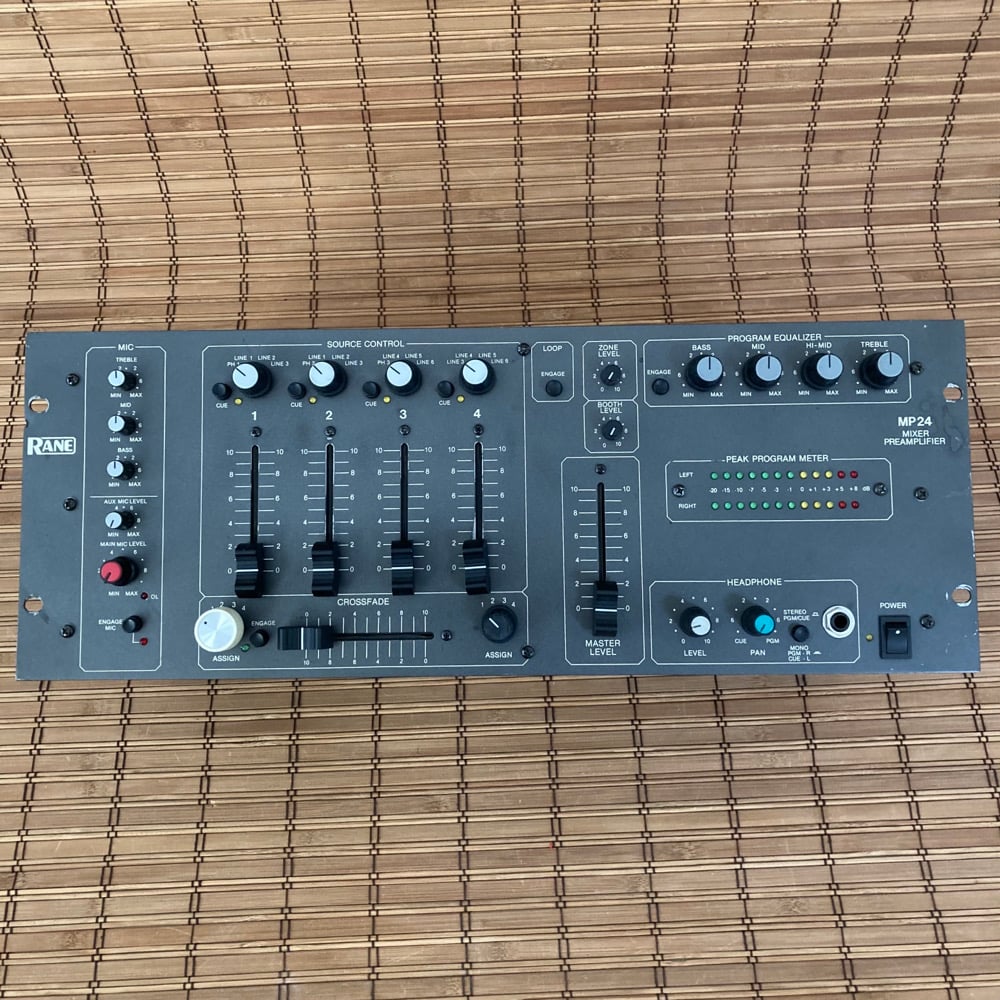

Original Rane MP 24 DJ mixer in good working condition made in 1988. It is tested and fully-functional. These are great, full-featured club mixers that sound awesome.

I did one repair to replace the MAIN MIC LEVEL pot and knob. The knob for ASSIGN control for the left side of the cross-fader is also a replacement. It was selected because it gives some height as to not hit the ENGAGE switch by accident.

There is wear and scuffs around as well as some bending on the faders and the top right corner.

Runs on 120V North American Power.

Features

• FOUR STEREO INPUT MIXING CHANNELS

• SIX STEREO LINE INPUTS

• THREE STEREO PHONO INPUTS

• TWO MIC INPUTS WITH THREE BAND EQ

• MIC & TWO PROGRAM EFFECTS LOOPS

• HEADPHONE CUEING

• FOUR BAND PROGRAM EQ

• 12 SEGMENT STEREO OUTPUT METERING

• BALANCED 3-PIN MASTER OUTPUTS

• TWO AUXILIARY OUTPUTS

• ISOLATED LIGHT CONTROL OUTPUT

Rane Description:

The Rane MP 24 Mixer is a giant step forward for night club mixers. Following the advice of the most renowned figures in the night club market, Rane developed the MP 24 to break down the limiting barriers of previous mixer designs.

Featuring four Stereo Input mixing Channels, each supplied with a selection of several PHONO and LINE Inputs, the MP 24 easily suits the needs of the most complex audio/video installations. A total of six Stereo LINE Inputs are available plus three Stereo PHONO Inputs.

The MIC CONTROL section of the MP 24 handles two microphones simultaneously. Both mics may be contoured by the three-band Mic Equalizer as well as processed through a MIC LOOP jack. On the rear of the unit, a 3-pin low-Z MAIN MIC Input with switchable PHANTOM POWER, and a ¼" hi-Z AUX MIC Input are both mixable.

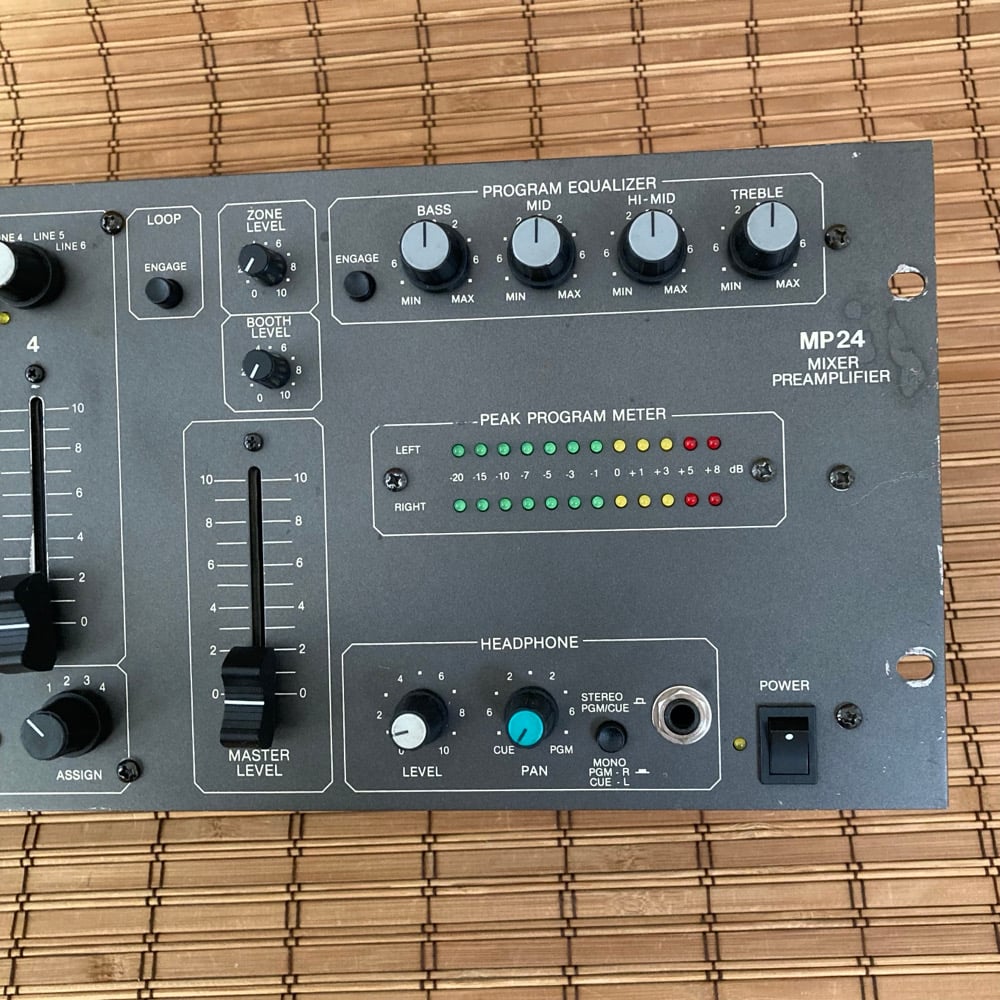

The Output section of the MP 24 provides a MASTER LEVEL fader, four band PROGRAM EQUALIZER (indepen-dent of the Microphone EQ), two auxiliary output controls (ZONE and BOOTH), a stereo 12-segment PEAK PRO-GRAM METER and full HEADPHONE CONTROL monitoring and cueing system.

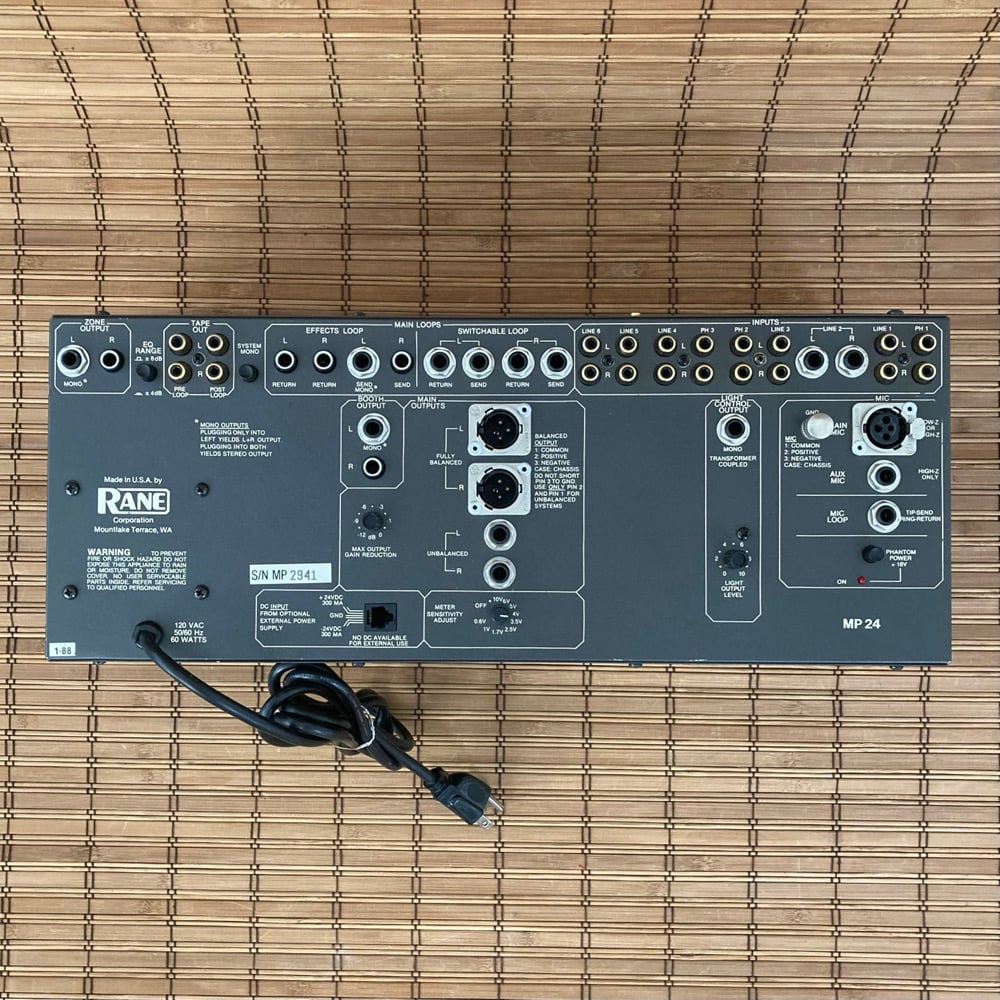

The rear of the MP 24, besides holding all of the normal Input and Output connectors, features a transformer isolated LIGHT CONTROL OUTPUT with associated LEVEL control, balanced 3-pin MAIN OUTPUT connectors, Program Equalizer EQ RANGE switch (±4dB or ±8dB) and a SYSTEM MONO switch.

All sliders on the MP 24 are studio-quality, side wipe faders as found on high quality audio mixing consoles.
