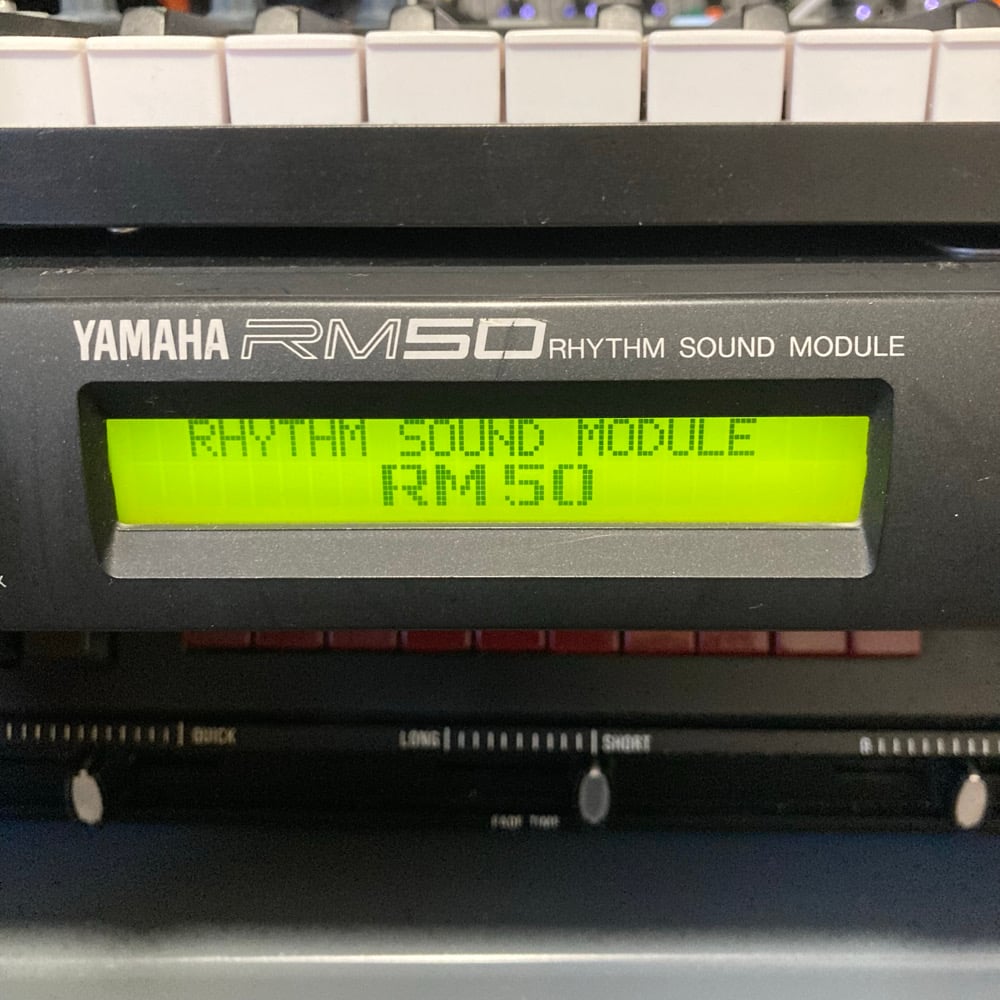

Yamaha RM50 • Rhythm Sound Module • Electronic Drums Rack • 90s made in Japan

Early 90s 1U Yamaha RM50 drum rack in great working order.

This one runs on 120V North American voltage and has a grounded power cable.

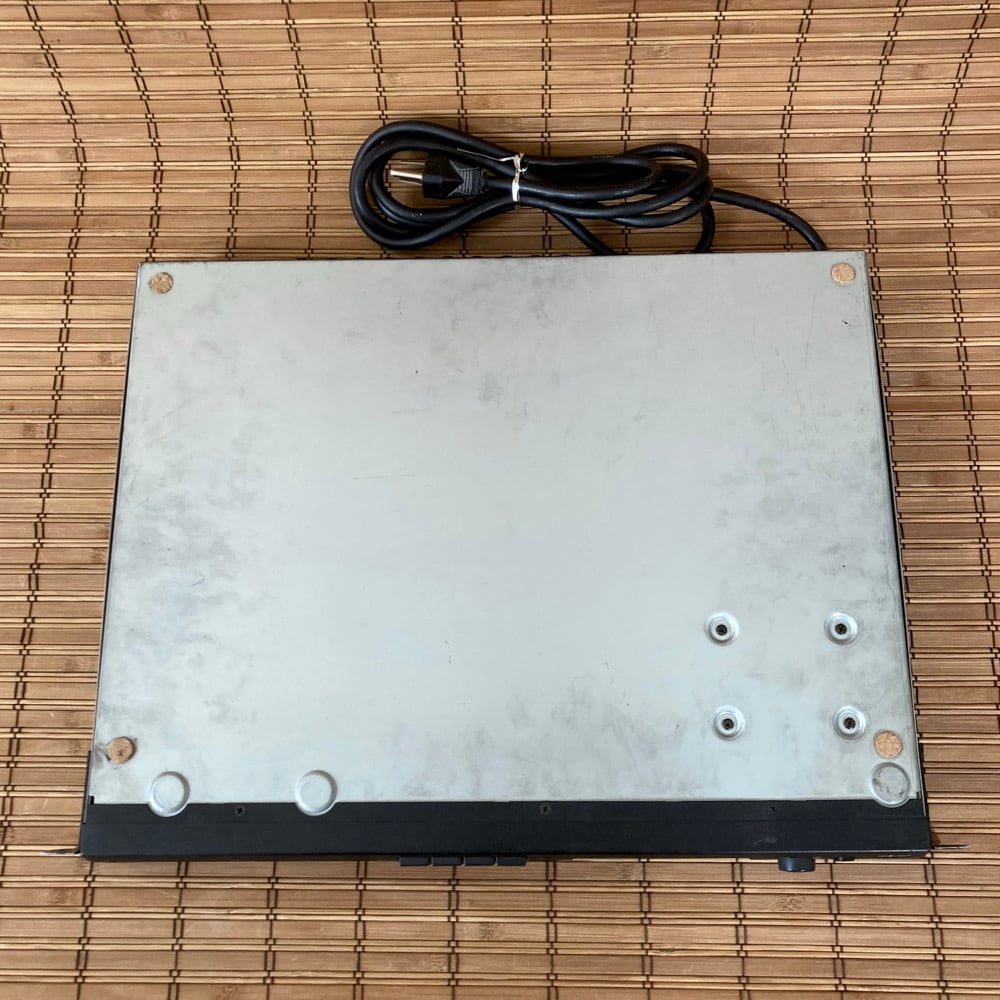

Just the rack unit is included. Display stands not included.

Preset rhythm kits:

Rock 1-3, Studio 1-2, Metal, Pop 1-2, Country, Latin Rock, Latin Perc, Brazil, Funk, R&B 1-2, Jazz Big, Jazz Small, Jazz Brush, Dance 1-2, House 1-2, Rap, Mouth Kit, Hip Hop, World 1-2, Gated 1-2, Fusion 1-2, Reggae 1-2, Techno 1-2, Analogue 1-2, Reverb, Stadium, SFX Kit 1-2, G MIDI, Yamaha, Dry Zone 1-2, Room Zone 1-2, Rev Zone 1-2, Kicks 1-3, Snares 1-3, Toms 1-3, Cymbals 1-2, Perc 1-2, Special/FX1, FX/Stacks.

Specs:

Sound generation: AWM2 16-bit linear samples, up to 48kHz sampling frequency Filtering: LP12, LP24, HP12, HP24; resonance; single-segment EG; part of each Voice Element

Kits: 64 Preset (ROM), 64 Internal (RAM), 64 Card

Waveforms: 133 (ROM)

Voices: 500 Preset, 500 Variations, 128 Internal

Maximum simultaneous notes: 16

Maximum simultaneous timbres: 16

Note layering: 2 Elements per Voice, two Voices per note

Sample RAM: optional SYEMB06 512Kb memory board which can hold up to 64 user Waveforms; sample data can be received via MIDI in TX16W and Sample Dump Standard formats

LCD: 2 x 24-character, backlit

Front-panel card slots: three waveform, one data; the RM50 can read SY77, SY55 and RY30 waveform cards

Rear panel: Stereo out (L/Mono and R); six individual outs; stereo headphones output; six trigger inputs; MIDI In, Out and Thru

Dimensions: 18⅞" (W) x 1¾" (H) x 13⅝" (D)

Weight: approx, 11lbs
